Pan Head Self Tapping Screw
Products
For over 30 years, ZYH YIN is an outstanding hardware and accessory manufacturer in Taiwan. We supply good quality products with competitive price, and provide superior screws, bolts and nuts mostly for wooden furniture. In addition to the product line, we accept customer’s special designs and develop new products to fit their requests as well. Contact us now for more information.

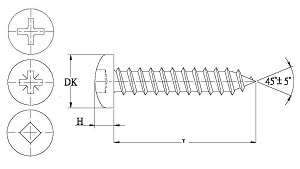

Tapping Screw Pan Head (IFI.7)
Thread：INCH,METRIC
Unit：MM
| Tolerance | DK | H | |||
|---|---|---|---|---|---|
| Size | # 5 | 5.87 | 6.22 | 2.16 | 2.41 |
| # 6 | 6.05 | 6.50 | 2.36 | 2.61 | |
| # 8 | 6.86 | 7.77 | 2.79 | 3.04 | |
| #10 | 8.18 | 9.47 | 3.20 | 3.48 | |
| #12 | 10.34 | 10.79 | 3.58 | 3.88 | |
Tapping Screw Flat Head
Thread：INCH,METRIC
Unit：MM
| Tolerance | DK | ||
|---|---|---|---|
| Size | # 5 | 5.46 | 6.02 |
| # 6 | 6.05 | 6.65 | |
| # 8 | 7.24 | 7.92 | |
| #10 | 8.46 | 9.19 | |
| #12 | 9.65 | 10.14 | |
Tapping Screw Oval Head
Thread：INCH,METRIC
Unit：MM
| Tolerance | DK | ||
|---|---|---|---|
| Size | # 6 | 6.05 | 6.65 |
| # 8 | 7.24 | 7.92 | |
| #10 | 8.46 | 9.19 | |
| #12 | 9.66 | 10.46 | |
Tapping Screw Truss Head (IFI.7)
Thread：INCH,METRIC
Unit：MM
| Tolerance | DK | H | |||
|---|---|---|---|---|---|
| Size | # 5 | 6.91 | 7.34 | 1.68 | 1.98 |
| # 6 | 7.70 | 8.15 | 1.88 | 2.18 | |
| # 8 | 9.25 | 9.75 | 2.24 | 2.59 | |
| #10 | 10.80 | 11.38 | 2.87 | 3.25 | |
| #12 | 12.37 | 12.98 | 3.00 | 3.40 | |
